Capturing Interactions

Disclaimer: Capturing interactions is released as a beta feature. Admins can decide if they like to keep the feature available for all users, to test it themselves, or to disable it. This article will be edited as the feature adapts. Should you experience any challenges while testing recorded interactions please inform us at support@walnut.io

Recorded interactions allow users to include interactive elements within a captured screen. If a captured screen has assets that can be clicked into, enabling recorded interactions will allow them to be live in the demo.

Drop-down menus are the best example of a recorded interaction. When users experience your demo, you can enable them to click through drop-down menus and therefore truly interact with your product.

How to use recorded interactions

Recording interactions is available for use through the extension on already captured screens. This means that to enable the capability, you must first perform a single capture.

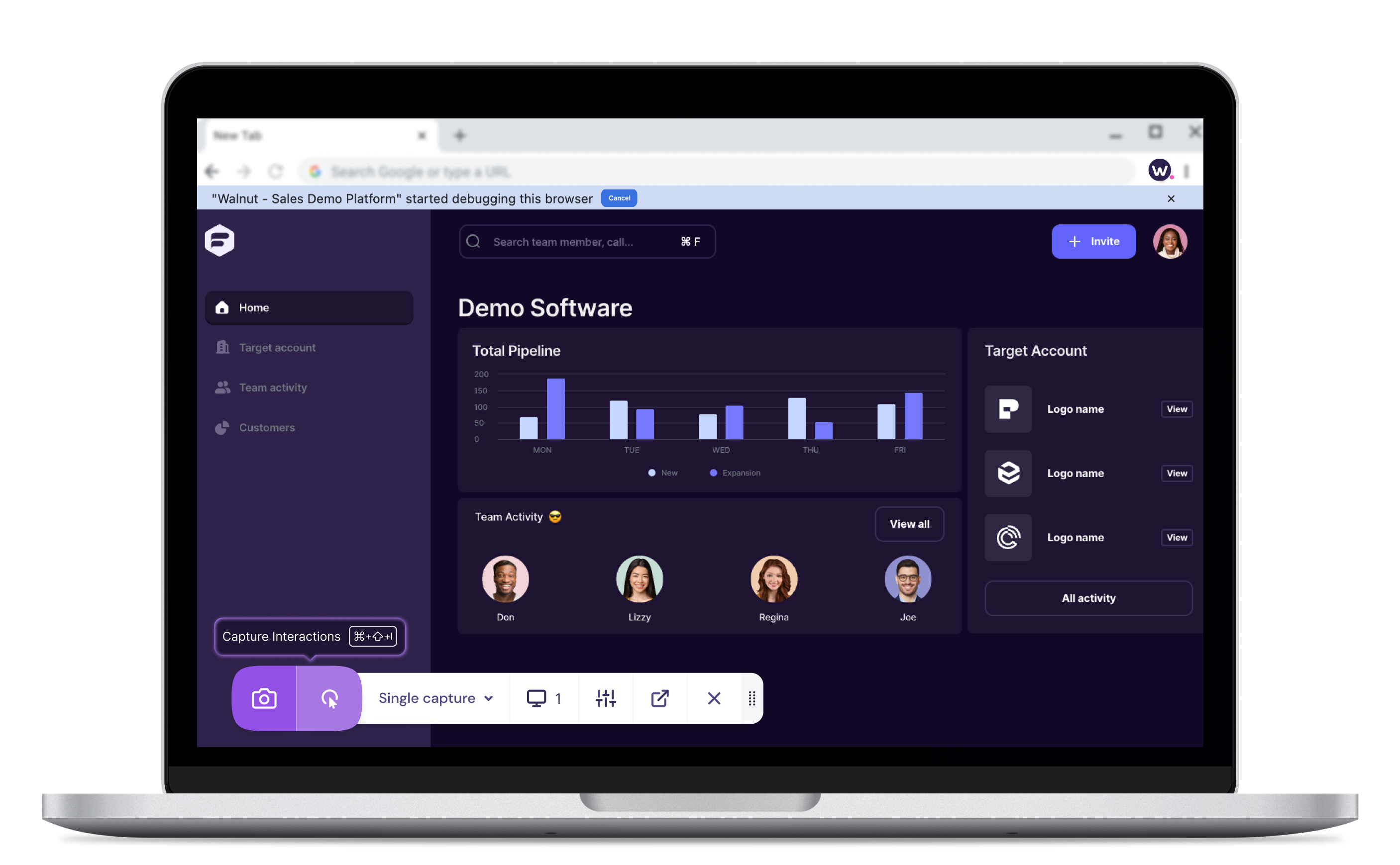

As soon as the extension is open, the Walnut debugger will appear. To use capture an interactive element on the screen, first take a single capture. Then click on the interactions button to the right of the camera.

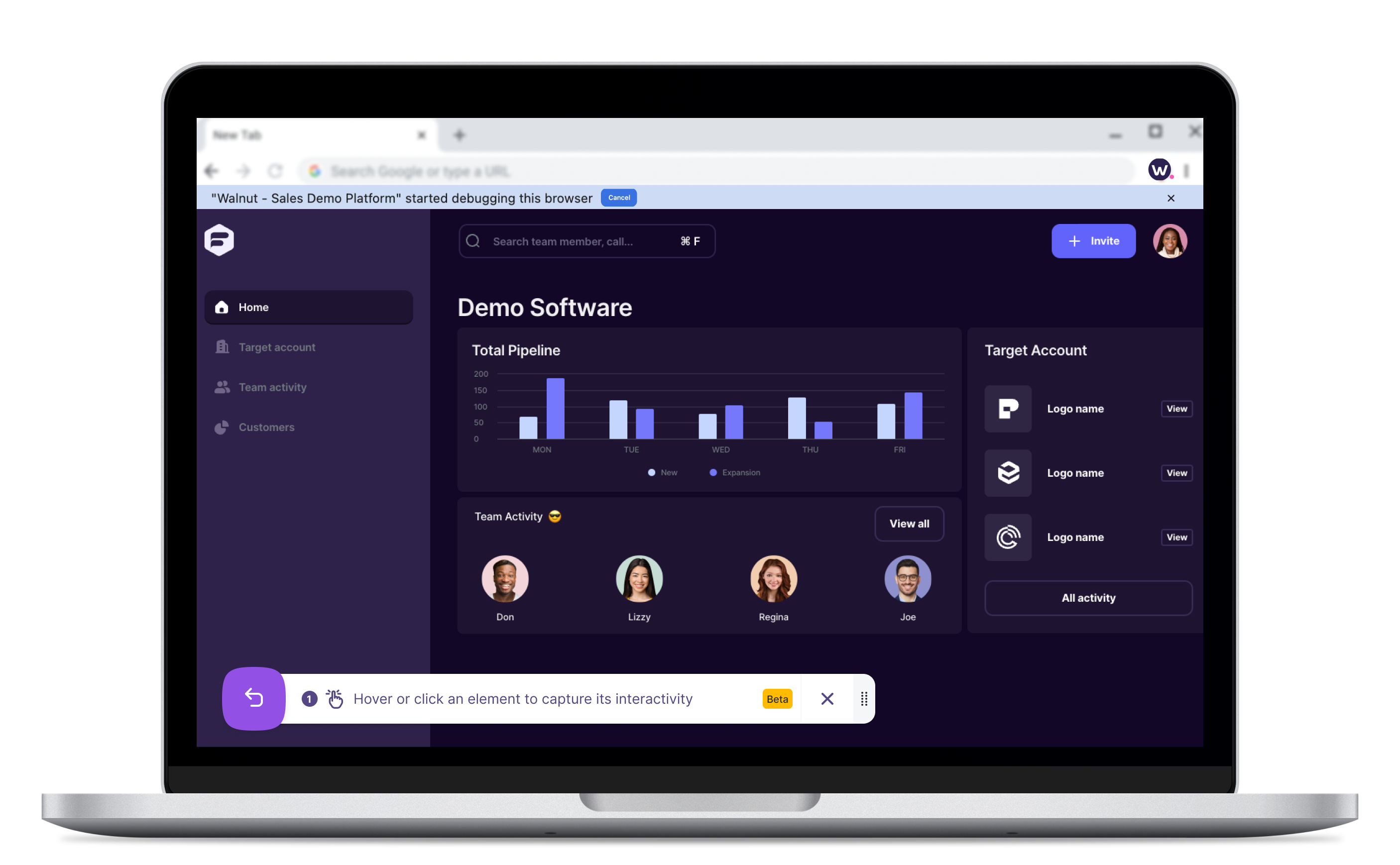

Once you've enabled the interactions button, you can interact with the page and the elements will be captured.

If the interaction was captured successfully you'll get a confirmation notification on the extension.

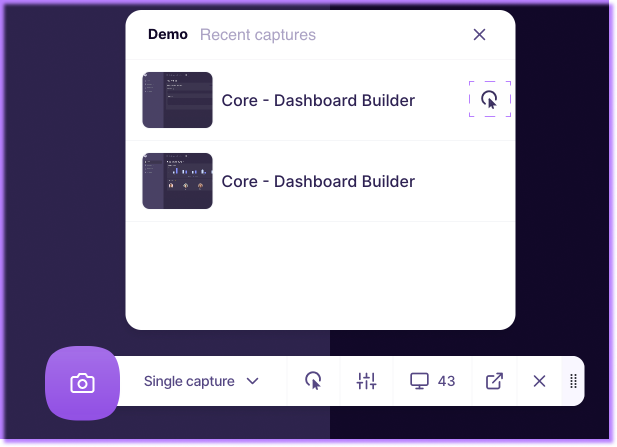

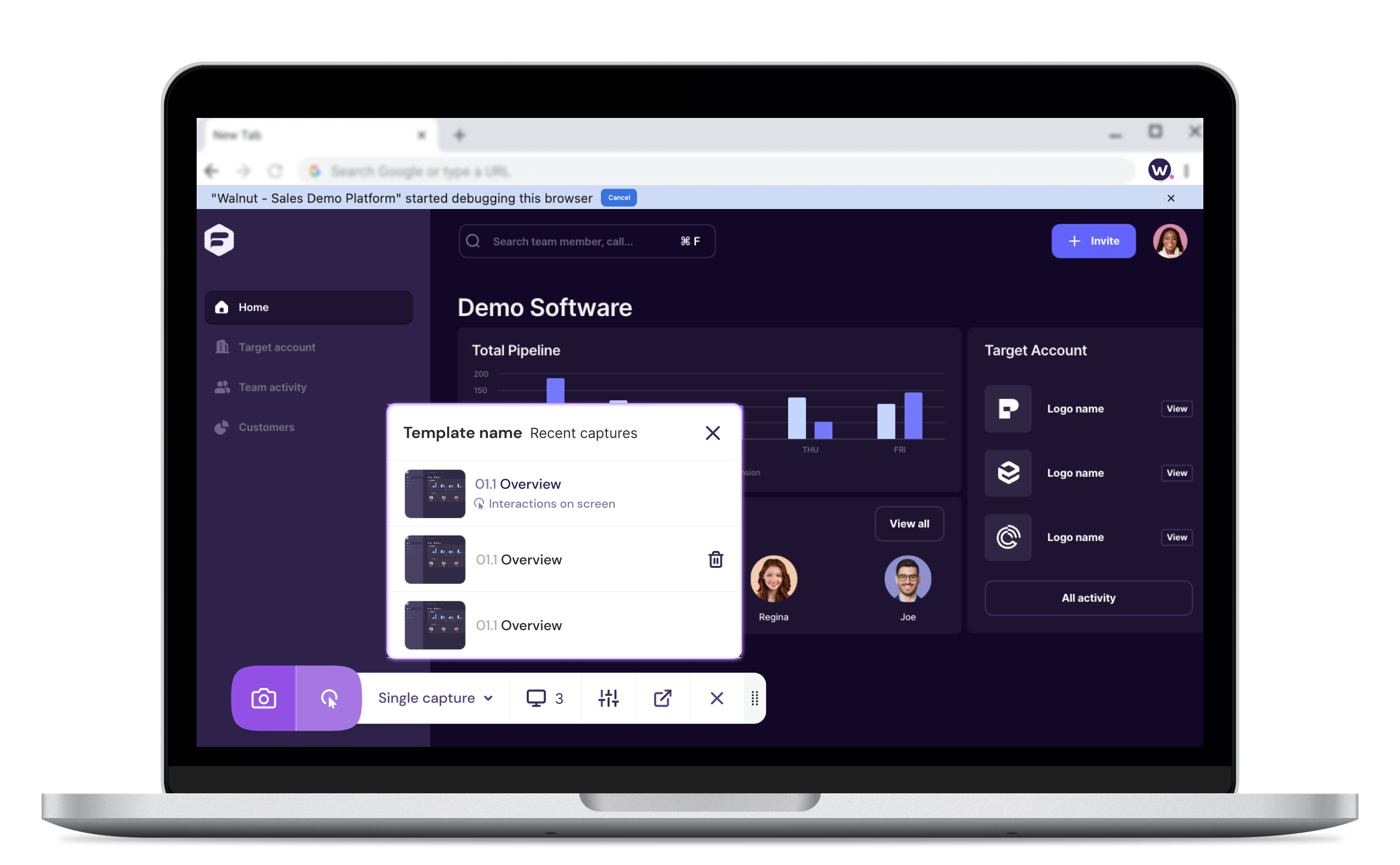

This indicates you're screen now includes the interactive elements. You can continue to capture or click the back button to return to the extension's natural state. By clicking on the screen icon within the extension, you'll see which screens were successfully captured. Those screens with interactive elements will be noted.

Recorded Interactions Best Practices

  • For an interaction to capture successfully, you need to perform the interaction all the way through. For example, if you click on a down arrow to open a drop down menu. Be sure to then also click on the arrow to bring the menu back to its original state.
  • If the extension indicates that an interaction was successfully recorded, but you are then unable to view the interaction within the editor, contact support@walnut.io.

  • When looking through your captured screens, you will see that the page with the interactions captured on it will also show the icon.

How to edit recorded interactions

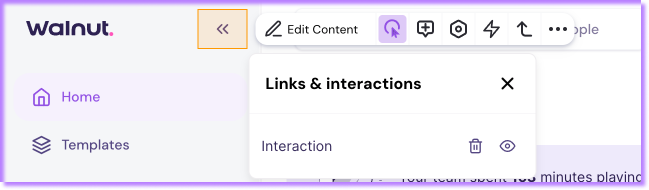

In the template screens, recorded elements will appear within the editor. You will see the interactions logo in orange applied to the element. Click on the element, then select trigger interaction.

Screenshot 2023-08-20 at 11.48 1.png

The element will then also have the interaction logo applied in purple via edit mode. You can edit the interaction's content or add a guide step to it.

Screenshot 2023-08-20 at 11.49 1.png

Once you've applied the interaction, head into preview mode to see how it looks!

Important to Note 📝

  • Capturing the interaction is not the only action. You must actually enable the "trigger interaction" button within the template for it to appear in the demo.
  • You cannot trigger more than one interaction at the same time.
  • Smart objects are not currently supported with recorded interactions.
  • You can use the update screens feature to re-capture an existing page within your template to now include a recorded interaction.
  • If you cancel the debugger at the top of the page after enabling the feature, it will be automatically turned off.
